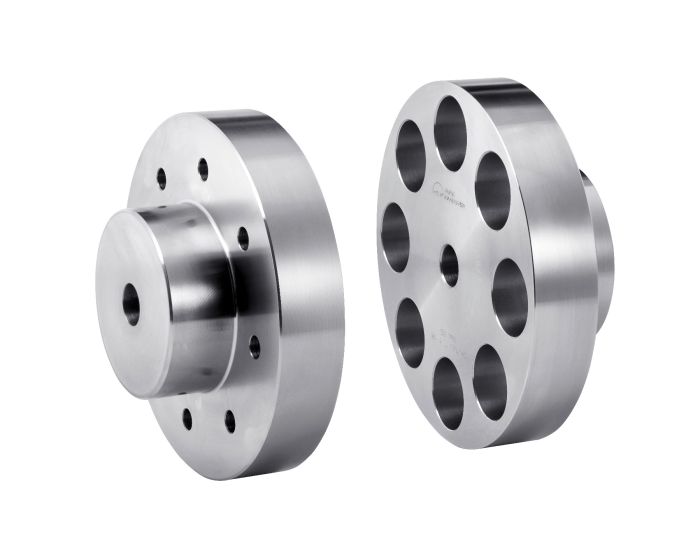

ELCO-Coupling half (configurable)

Binding delivery date currently not possible (see product details)

Material number (ID)

p_ch_rc

Skip to the beginning of the images gallery

More Information
Material number (ID)	p_ch_rc
Note	For more product details please select a variant!
Variants part 1 (material ID, SKU)	NS--- 018 Part 1 (200554004), NS--- 036 Part 1 (200350616), NS--- 044 Part 1 (200547914), NS--- 066 Part 1 (200350618), NS--- 098 Part 1 (200547938), NS--- 113 Part 1 (200350620), NS---123 Part 1 (200695611), NS--- 129 Part 1 (200350622), NS--- 149 Part 1 (200695587), NS--- 161 Part 1 (200350624), NS--- 184 Part 1 (200695628), NS--- 210 Part 1 (200350626), NS--- 214 Part 1 (200548582), NS--- 215 Part 1 (200350628), NS--- 222 Part 1 (200548843), NS--- 228 Part 1 (200350630), NS---231 Part 1 (200548867), NS---237 Part 1 (200350632), NS--- 247 Part 1 (200548946), NS--- 271 Part 1 (200549019), NS--- 311 Part 1 (200549095), NS--- 316 Part 1 (200735178), NS--- 324 Part 1 (200783601)
Variants part 2 (material ID, SKU)	NSO-- 018 Part 2 (200554035), NSO-- 036 Part 2 (200350617), NSO-- 044 Part 2 (200547921), NSO-- 066 Part 2 (200350619), NSO-- 098 Part 2 (200547945), NSO-- 113 Part 2 (200350621), NSO-- 123 Part 2 (200695604), NSO--129 Part 2 (200350623), NSO-- 149 Part 2 (200695594), NSO-- 161 Part 2 (200350625), NSO-- 184 Part 2 (200695635), NSO-- 210 Part 2 (200350627), NSO--214 Part 2 (200723878), NSO-- 215 Part 2 (200723877), NSO-- 222 Part 2 (200548850), NSO-- 228 Part 2 (200350631), NSO-- 231 Part 2 (200548908), NSO--237 Part 2 (200350633), NSO-- 247 Part 2 (200548984), NSO-- 271 Part 2 (200549040), NSO-- 311 Part 2 (200549136), NSO-- 316 Part 2 (200557090), NSO-- 324 Part 2 (200784944)
Variants W (material ID, SKU)	WS---259 (200733760), WS--- 285 (200733761), WS--- 314 (200733762), WS---319W (200733763), WS--- 329 (200733764)
Included	Coupling half (without transmitting element)

Product Information

ELCO Torsionally Flexible Coupling

The torsionally flexible ELCO-Coupling effectively absorbs shocks and suppresses vibrations which arise during operation. Moreover, it takes up radial and angular misalignments of the connected shafts and allows a certain amount of longitudinal displacements

Assembly of a correctly designed ELCO-Coupling ensures safe power transmission and provides general protection of the respective machine shafts against vibration damage.

The ELCO-Coupling has proved itself in tens of thousands of drives through its adaptable design and its accurate workmanship.

The ELCO-Coupling shows the following advantages:

Torque and speed shock loads are diminished by the resili ence and damping effect of the compression sleeves.
Torsional vibrations are effectively limited by a shifting of the natural frequencies of the system in areas which are not critical for the operating range.
Torsional vibrations are effectively limited by the damping effect of the coupling when passing through the critical speed.
Safe and reliable torque transfer results from the coupling bolt design and from the axial pre-loading of the compression sleeves.
Radial and angular misalignments are compensated by the universal flexibility of the compression sleeves and by the ease with which they are deformed.
Longitudinal displacements of the shafts are taken up by the ability of the compression sleeves to move slightly in the mating holes.
Axial dismantling of the compression sleeves and coupling bolts is troublefree without any need for removing the coupling or for moving the connected units (for changing the sleeves or for test runs etc.)
Machines can be aligned when the coupling bolts are not in position.

Type N/W

The ELCO-Coupling type N and W are used for the flexible connection of shafts.

Description

The ELCO-Coupling type N consists essentially of the two coupling halves, flanges 1 and 2 and the transmission bolts (4), on which the rubber compression sleeves (5) are mounted.

The finely ground transmission bolts (4) are made of steel and are inserted with a specially close fit in the bores (3) of the half coupling, flange 2. They engage, with their axially pre-loaded compression sleeves, in the bores provided in the coupling half, flange 1.

The ELCO-Coupling type W is a complementary version of the well-known type N.
ELCO-Coupling type W consists of two identical coupling parts, each with transmitting bolts and compression sleeves arranged in alternate order.

Productkey for ELCO-Couplings

Type	Coupling Material	Intermediate Ring	Bolt Design	Type of Compression Sleeve	Type of Compression Sleeve
Type N	G - Cast iron	Z - With intermediate ring	M - Solid	U - Modified rubber	018 - 329
Type W	K - Spheroidal cast iron	O - Without intermediate ring	H - Hollow	W - Nitrile rubber
Type B	S - Steel		X - Special designs	V - Chloroprene-polymeride
Type S	X - Special materials
Type G
Type E

Example: ELCO-Coupling of standard design (N) made of steel (S), without(O) intermediate ring, with solid (M) bolts and (U) type compression sleeves. Coupling size 247 = NSOMU – 247.

Further designs or dimensions on request!
