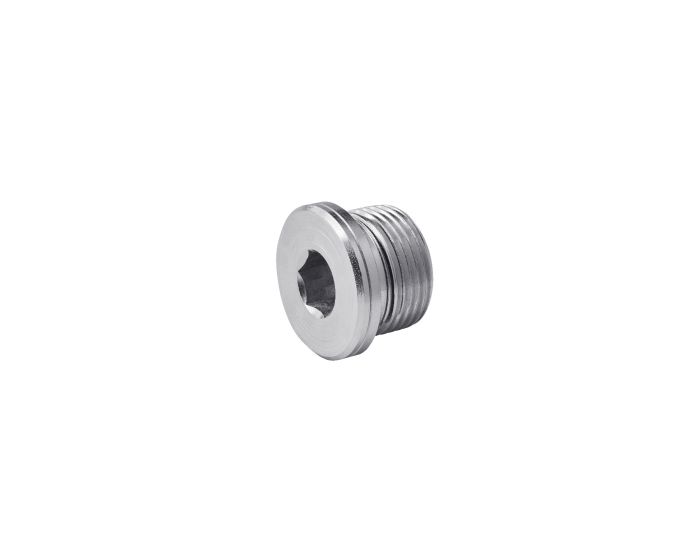

Screw plug (configurable)
Binding delivery date currently not possible (see product details)
Material number (ID)
p_sp_rc
| Material number (ID) | p_sp_rc |
|---|---|
| Note | For more product details please select a variant! |
| Variants (material ID, SKU) | G1/8 (200351002), G¼ (200351003), G3/8 (200351004), G½ (200351005) |
| Included | Screw plug, sealing |
Intended Purpose
Screw plugs with elastic flat gaskets are used to seal tapped holes in components.
Application Range and Environment
The major application range includes slide bearing housings and their attached parts, with the purpose of keeping internal lubricants from leaking out and/or preventing external (dirt) particles and fluids from entering the unit. The ambient temperature ranges from -40 °F to +212 °F. All components must be compatible with all common mineral as well as synthetic lubricants. Screw plugs with elastic flat gaskets can be used with system pressure up to a maximum of 100 bar.
